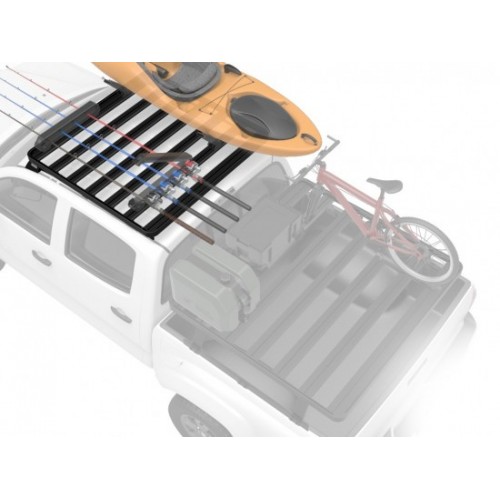

KRFM007T - Ford & Mazda Roof Rack Pre 2012 (Full cargo Rack) - Front Runner Slimline II
Consisting of:
1 x FASS001 - Foot 40mm (Pair)
1 x FASS002 - Foot 50mm (Pair)
1 x FITT002 - Fitting Instruction - Kit Vehicle Specific
2 x RRAC021 - Between slat foot adapter (Pair) 3CR12 SST

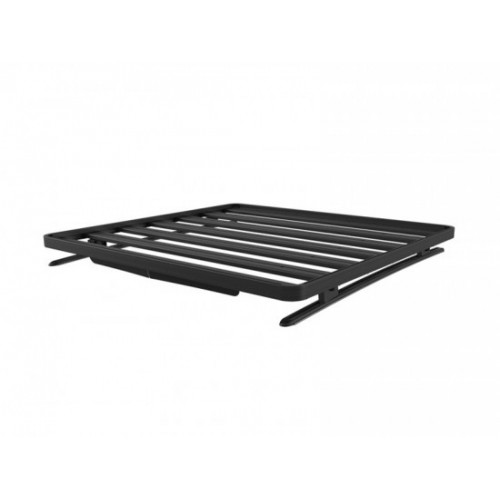

1 x RRSTA07 - Slimline II Tray - 1165mm(W) x 1358mm(L) x 50mm(H)
1 x TRFD001 - Ford/ Mazda D/Cab Tracks 1250mm (Pair L/R)
Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 23kg (52lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
