Front Runner Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit

Front Runner Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit
Front Runner Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit Front Runner Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit Front Runner Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit Front Runner Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit Front Runner Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit
Brand: Front Runner
Product Code: FRNKRTH011T
Availability: In Stock
Price: S$2,699.00
Ex Tax: S$2,699.00
Qty:     - OR -   Add to Wish List
Add to Compare

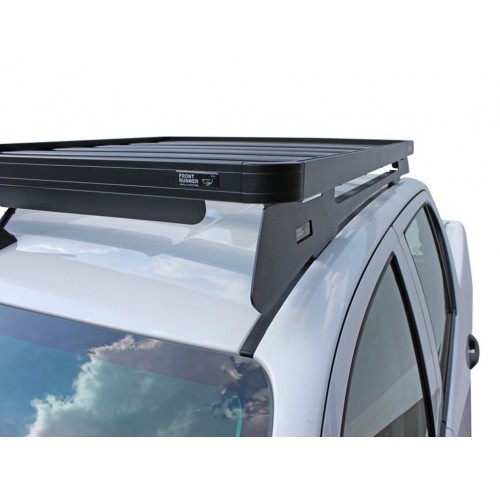

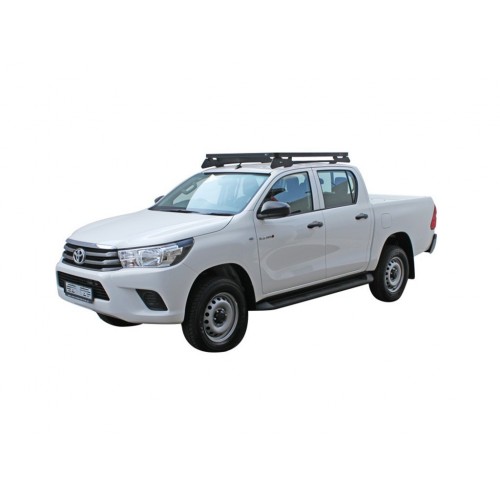

This 1358mm/53.5" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Toyota Hilux Revo Double Cab. Drilling into the vehicles roof is required to insert mounting hardware, a template is provided for hole placement.

Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit - by Front Runner

Consisting of:

1 x FATH002 - Toyota Hilux Revo DC (2016-Current) Foot Rails - by Front Runner

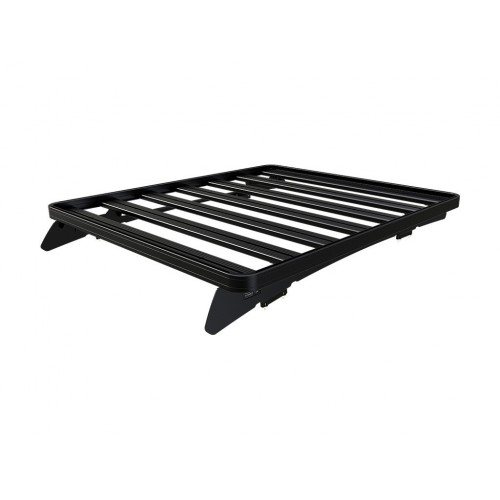

1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 25kg (56lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


Shipping Dimensions:

Width 620mm (24")
Length 1640mm (65")
Height 160mm (6")


Shipping Weight:

Weight 29.4kg (64.7lbs)
