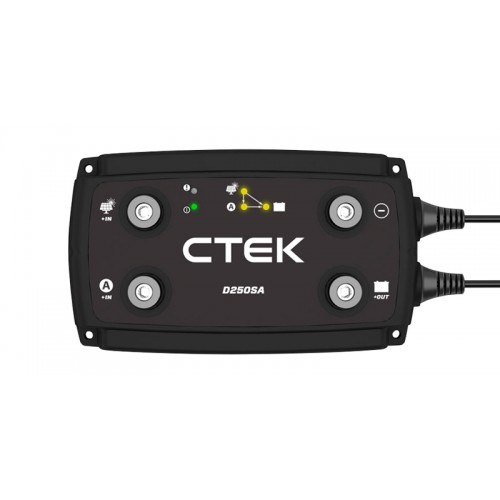

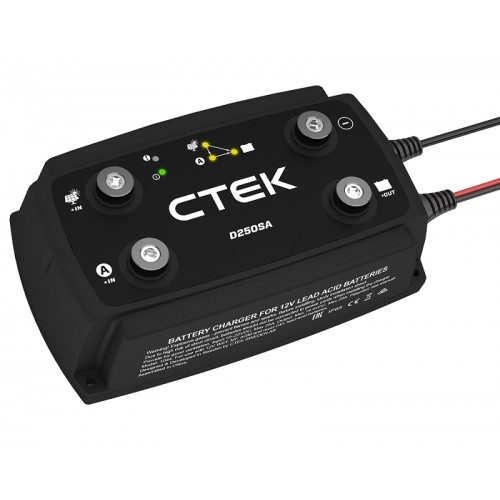

CTEK D250SA Dual Battery System 12V On Board Battery Charger Battery Management System 40-186

CTEK D250SA Dual Battery System 12V On Board Battery Charger Battery Management System 40-186
CTEK D250SA Dual Battery System 12V On Board Battery Charger Battery Management System 40-186 CTEK D250SA Dual Battery System 12V On Board Battery Charger Battery Management System 40-186 CTEK D250SA Dual Battery System 12V On Board Battery Charger Battery Management System 40-186
Brand: CTEK
Product Code: CTED250SA
Availability: In Stock
Price: S$490.00
Ex Tax: S$490.00
Qty:     - OR -   Add to Wish List
Add to Compare

The D250SA is a fully automatic, 5 step charger that supplies up to 20A of power to any 12V lead acid service battery from 40-300Ah, including Wet, EFB, MF, Ca/Ca, AGM and Gel. It has selectable charge voltages for AGM batteries and can use power through its dual input from alternator, solar panel and wind power. When the service battery is fully charged, the D250SA will automatically redirect maintenance charge power to the starter battery. The D250SA can maintain a stable output up to 20A to vehicles fitted with smart ECU controlled alternators and also has a temperature sensor for optimised charging, regardless of weather conditions.

  • 20A fully automatic temperature compensated charging for batteries from 40-300Ah while you’re on the move
  • Dual input (solar and alternator in parallel)
  • Smart alternator compatible
  • Battery separation replacing diodes and VSR relays
  • Solar panel regulator with Maximum Power Point Tracking (MPPT)
  • Selectable AGM option – 14.4V or 14.7V
  • Maximised charging for better battery life and performance
  • Temperature sensor to compensate for hot or cold conditions
  • Splash and dust proof (IP65)
  • Compatible with SMARTPASS 120 for the ultimate 140A power management solution
  • 2-year warranty



Technical Information

Ambient temperature -20˚C to +50˚C (- 4°F to +122°F)
Positioning Permanent installation/on board
Warranty 2 years
Input 11.5-23V, 25A
Output 14.4/14.7V, 20A max
Back current drain* Corresponding to less than 1Ah/month
Battery types 12V:, WET, MF, Ca/Ca, AGM, EFB, GEL
Battery capacity 40-300Ah
Insulation class IP65
Ripple** Less than 4%
